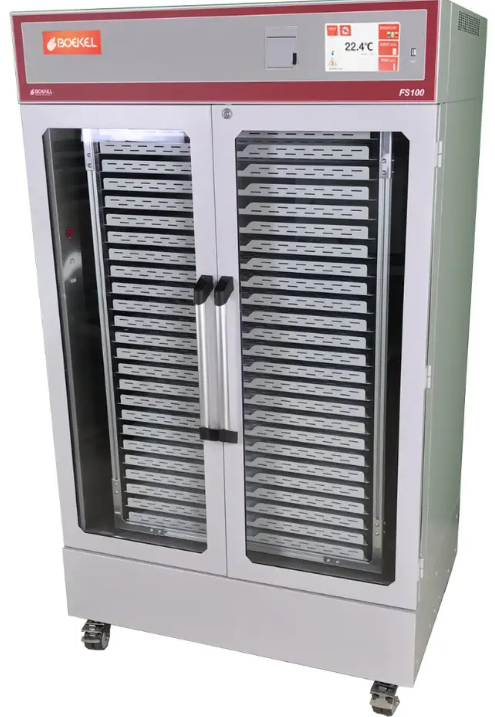

The Boekel Scientific FS100 is a floor standing platelet incubator / agitation system. The unit has 25 shelves and can hold up to 100 units of platelets. Boekel Scientific pioneered the use of thermoelectric heating and cooling for the storage of platelets and has implemented this technology on the FS100. Thermoelectric heating and cooling is efficient and does not require refrigerant gas or compressors, which can be prone to failure. The system has a 7” industrial color touch screen and an alarm indicator light that can be viewed from across a large room. The large indicator light is illuminated when the unit is powered on and blinks when the unit enters an alarm condition. This indicator light allows for quick identification of a unit that requires attention.
Boekel platelet incubation / agitation systems have an advanced control system with many automated processes including high low temperature alarm testing, unit temperature calibration and the patented inventory management system. The inventory management allows for platelet expiration tracking using color coded icons. This easy-to-use tool was designed to decrease loss of platelets due to time expiration. These systems also have an integrated thermal printer for printing temperature and event reports. This service free device replaces the old-style chart recorders that are difficult to read and require monthly maintenance. The control systems also have a USB port for downloading unit data and an ethernet port for connection the equipment to a network. All systems also have a battery backup system that will log data in the event of a power failure.
The FS100 has smooth rolling, lockable casters making it easily to install and relocatable. If a blood bank uses a secondary temperature monitoring system they can easily attach a probe using the FS100 probe port and mounting hardware.
Platelet Incubator: |
Model Number FS100 (115V) and FS100-2 (230V) |
Electrical: |
115V, 50/60 Hz, 7A Peak, 4A Steady State, 500 Watts 230V, 50/60 Hz, 4A Peak, 2A Steady State, 500 Watts |
Capacity: |
25 Shelves, 4 Units per Shelf, 100 Units Total |
Temperature Control Range: |
20°C – 24°C |
Default Set Temperature: |
22°C |
Heating / Cooling: |
Solid State Thermoelectric Temperature Control |
Alarms: |
Door, Printer, Inventory, Low Temperature, High Temperature, Agitation, General Equipment, Network, and Battery Alarms |
Printer: |
50mm thermal printer |
Interface: |
7" Industrial Color Touch Screen |
Temperature Control Method: |
Thermoelectric |
Patented Inventory Management System: |
Time Based with Color Coded Indicators |
Ambient Temperature Range: |
16°C – 30°C Ambient |
Temperature Accuracy: |
±0.3°C between 20°C and 24°C |
Connectivity: |
USB, Ethernet, RS485, Dry-contact Relay |
Probe Port: |
External Probe port and mounting hardware for secondary temperature monitoring system |
Battery Backup: |
Yes, for system logging |
| Casters: | Corrosion Resistant Locking Casters |
Product Dimensions: |
40” W x 28” D x 70” H |
Shipping Weight: |
575 lbs. |
Transport and Storage Temperature Range: |
10°C – 50°C |
Humidity (operation, transport, or storage): |
25-90% (non-condensing) |
Altitude: |
0 - 2,000 m above sea level |
Warranty: |
2 Year Warranty |
