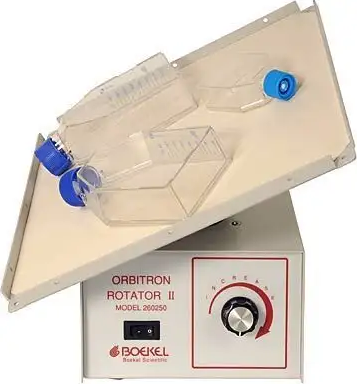

The Boekel Orbitron Rotators are designed to provide a gentle, low-foam mixing motion for uniform mixing of samples in test tubes and glass trays. Application areas include Hybridization, Electrophoresis, Hematology, RIA, Biochemical preparation, resin suspension and other areas requiring complete mixing. There are two basic models of the Boekel Orbitron Rotator. The Model 260200 is a fixed angle/fixed speed version and the Model 260250 is a variable angle/variable speed version. The Boekel rotators come with standard 12-inch trays and mats.
The Boekel Rotator I Model 260200 has a rotating speed of approximately 25 RPM with the tray set at a fixed tilt angle of 23 degrees. The Boekel Rotator II Model 260250 has a variable speed of 6 to 25 RPM and a variable tray tilt angle of 0 to 23 degrees. Each Rotator comes with a 12-inch tray and one dimpled mat for use with test tubes. The Model 260250 also includes one flat mat for use with other vessels. The trays when mounted to the Boekel rotator are capable of supporting and rotating up to 1 kilogram (2.2 lbs.) of mass centered on the tray.
| Catalog Number | 260250, 260250-2 |
|---|---|
| Operating Environment Temperature | 4?C to 40?C (in a cold room or incubator) |
| Adjustable Speed | 6 to 25 orbits/min |
| Adjustable Tilt Angle | 0? to 23? |
| Mixing Type | 3 Dimensional Wave Mixing |
| Load Limit | 2.2 lbs |
| Product Dimensions W x D x H w/platform | 12" x 12" x 10" 30.5cm x 30.5cm x 25.4cm |
| Shipping Weight | 10 lbs (4.4kg) |
| Electrical | 260250: 115 VAC; 50/60Hz, 22 watts, 0.5 amps 260250-2: 230 VAC; 50/60Hz, 22 Watts, 0.5 amps CE marked* |
| Regulatory Approval | Power pack is UL, CSA and CE approved |
*230V units are supplied with continental European plug.
