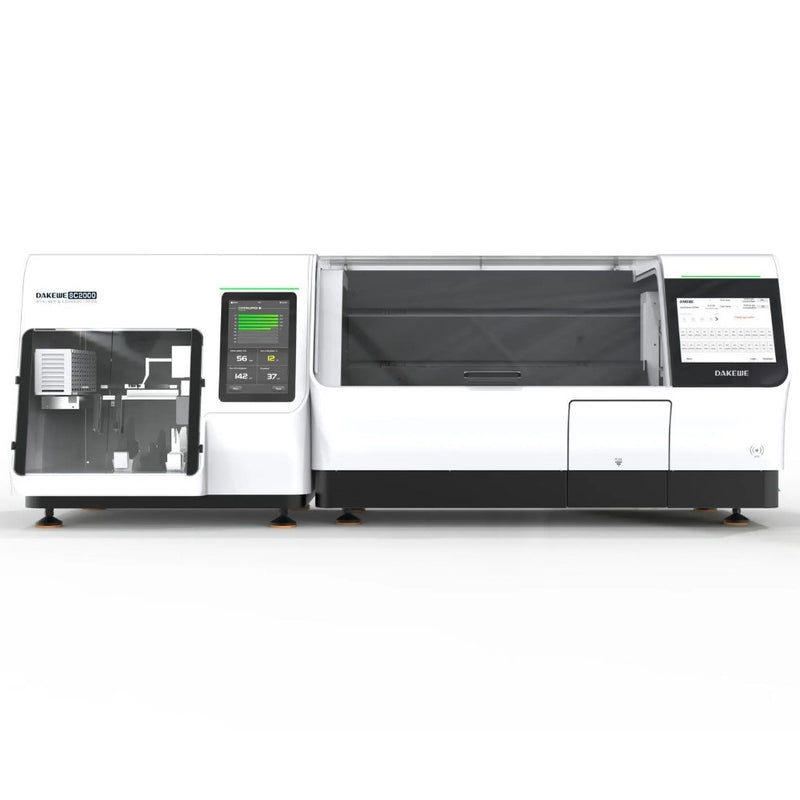

Dakewe Slide Stainer and Glass Coverslipper Workstation

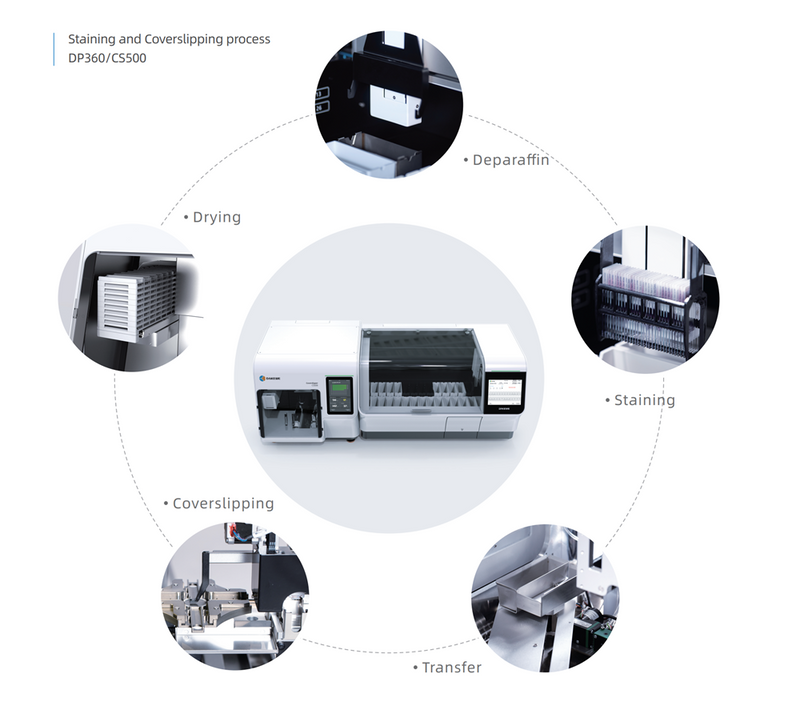

When the coverslipper is attached to the slide stainer, the transfer process is intelligent and simple thus no transfer device is needed. Once slide staining is complete, the slide rack is grasped by the robot arm of the coverslipper and moved from the slide stainer to the coverslipper. Each slide is automatically recorded in the whole process of the preparation, intelligent traceability is more accurate.

High Throughput, Unattended

High-throughput staining and coverslipping

The innovative intelligent software algorithm faciliates between 360-600 slides to be stained in one hour (dependent on user defined protocols). When the CS500 is attached to the DP360, the transfer process is intelligent and simple, thus no transfer device is needed.

Automated inspection

The device's performance and reagent status are automatically detected at startup, and the damaged coverslips are automatically identified and processed using a unique sensor so that the system is always in optimal operating condition.

Effective mountant dispensing system

The CS500 coverslipper has a quantitative and effective mountant dispensing system to prevent spillage. To avoid needle blockage, the needle will be automatically immersed in xylene once coverslipping is complete.

Slide tray output

The CS500 has a one-stop drying plate output and no manual transfer is needed, which allows for convenient image reading.

Humanized Design

Safer and more convenient to operate

Operation is more concise

10-inch color display, user-friendly software design, simple operation process, in line with the habits of users around the world.

Closed design for safety

The intelligent axhaust gas monitoring function consists of a professional negative pressure design to ensure that the internal fumes of the machine does not flow out. The exhaust fumes concentration sensor monitors in real-time to protect the health and safety of the staff.

Multiple alarms are more secure

Real-time voice, lighting, text and other ways to prompt and provide an intelligent operating guide program.

QC for Each Slide

Intelligent traceability is more accurate

Single slide can be traced more accurately

Each slide is automatically tracked through the whole process. The database records the staining procedure, reagent bath, coverslipping process, the operator, and other dimensions for easy traceability and program optimization, The quality report is generated so that the staining results are reliable and aid in any troubleshooting occurrences. The software system can connect with the laboratory's information system (LIS/HIS).

Human-computer interaction is more intuitive and convenient

Display the status of the staining and coverslipping for each slide dynamically, and visually display the current reagent status and the amount of slides that have been completed.

Remote real-time monitoring, alarms and queries

DAKEWE equipment cloud platform remote monitoring system (through WeChat, webpage, mail, SMS and other ways) allows real-time monitoring of equipment status and remove warning reminders, to achieve scientific and effective management of equipment.

Excellent Staining Quality

Automatic Adjusting Technology (AAT)

AAT adjusts the staining time according to the number of stained racks or days without human intervention. AAT makes the staining effect consistent and helps to save the reagent costs making the reagents usage more efficient.

Reagent Heating

The reagent heating system keeps high staining quality even in low temperature. The robotic arm can be set into stand-by mode to ensure accurate and complete differentiation process.

Intelligent Management System

A smart color identification system is provided to track reagent status. Reagents are marked with different colors indicating different uses status. Through this color managing system, operators can easily track the staining process in real time, track the history of staining records, and replace the reagents in time.

Scanning System

Quality control data is auto-recorded and stored for review. Reagents consumption statistics are available for cost evaluation. The DP360 reagent scanning system helps to identify and manage the reagents quality. Reagent quality history records can be tracked as well.

High-throughput

Quality control data is auto-recorded and stored for review. Reagents consumption statistics are available for cost evaluation. The mechanical arm can handle multiple racks at one time. The specially designed hydrophobic slide rack also provides high quality, effective, and consistent staining effect.

Fully Enclosed, non-Polluting Design

The DP360 has a fully enclosed design, its waste gas discharging and exhaust system with thickening activated carbon filters fully demonstrates that operator safety is always kept as our top priority.

Flexible and Diverse

Thanks to flexibility in quantity adjustment of loading and unloading stations, the same stations can serve as reagent stations. Buffering design of the drawer ensures accurate positioning of stations and helps to avoid splashing. From top to bottom, the DP360 demonstrates a unique water flashing design and washing stations that can easily be adjusted to serve as reagent stations.

FULLY AUTOMATIC AND INTELLIGENT HIGH-SPEED SLIDE STAINER FOR HISTOLOGY

Up to 360 slides/h - Automatic with both Oven and Heater solution - 26 (2 x 13) positions for tanks, 4 of which are tempered with warm water bath: - 4 places for cleaning tanks that can be transformed into reagent tanks - 4 places for the entrance and exit of the slide racks, 2 of which can be transformed into reagent tanks - 1 space occupied by the fixed oven - high-speed robotic arm (1.3 m/s) for handling and moving the slide racks - compatible with a UPS battery backup.

QUALITY CONTROL

Reagent change settings in days or number of slides - real-time monitoring of slide staining cycle - visual indication of reagent quality (green, yellow, red) - visual indication of slide rack location (blue) - report of slide staining cycles (traceability) - AAT (Automatic Adjusting Technology) reagent saving system that optimizes stain time according to reagent quality - automatic temperature management of tempered tanks (Ambient to 38?C) - automatic temperature control of the oven (0?C - 70?C) - Traceability with automatic recording of treatment data.

ERGONOMIC, SAFE, SERVICE AND MAINTENANCE FEATURES

Intuitive data setting interface - large touch screen - 10-inch friendly and intuitive graphical user interface (8,84?) - different user levels (operator, administrator, developer) - high efficiency activated carbon filtration protects users from toxic fumes - change according to use, max. every 3 months - control of the chemical level (ppm) in the machine with automatic regulation of the ventilation.
